Fire Rated MDF (Flame Retardant MDF) – Detailed Guide

1. What is Fire Rated MDF?

Fire Rated MDF, also known as FR MDF (Flame Retardant Medium Density Fiberboard), is an engineered wood panel made by enhancing standard MDF with fire-retardant chemicals and modified production technology.

Its main purpose is to improve fire safety performance by slowing down flame spread and reducing ignition speed in case of fire.

It is important to understand that Fire Rated MDF is not fireproof. It is a fire-resistant material designed to delay combustion and provide extra time for evacuation and fire control.

2. How Fire Rated MDF Works

The fire resistance of FR MDF is achieved through chemical and structural modifications:

1. Fire-Retardant Additives

Special chemicals are added during production. When exposed to heat, they:

• Absorb heat energy

• Release non-flammable gases

• Reduce oxygen availability around the flame

2. Char Layer Formation

When heated, the surface forms a protective char layer that:

• Blocks oxygen penetration

• Slows down internal burning

• Protects the inner core of the board

3. Controlled Thermal Decomposition

The modified wood fibers decompose more slowly under high temperature, reducing flammable gas release.

3. Manufacturing Process of Fire Rated MDF

The production process is similar to standard MDF but with additional fire-retardant treatment:

1. Raw Material Selection

• High-quality wood fibers

• Removal of impurities such as sand, bark, and metal particles

• Consistent fiber size for uniform density

2. Fire-Retardant Treatment

• Fire-retardant chemicals are evenly applied to wood fibers

• Ensures full penetration and uniform distribution

3. Resin Mixing

• Modified adhesive systems are used

• Improved thermal stability and bonding strength

• Controlled formaldehyde emission (E1/E0/CARB P2 options)

4. Hot Pressing

• High temperature and pressure forming

• Precise control of pressing curve

• Ensures fire-retardant properties are properly activated and fixed

5. Cooling and Sanding

• Cooling to stabilize internal structure

• Surface sanding for smooth finish

4. Key Features of Fire Rated MDF

Improved Fire Resistance

Compared to standard MDF, FR MDF significantly slows down flame spread and ignition.

Smooth Surface Finish

The board maintains a flat and fine surface suitable for painting, laminating, or veneering.

Excellent Workability

It can be easily:

• Cut

• Drilled

• CNC machined

• Routed

without serious edge chipping.

Uniform Structure

Dense and stable internal structure with no voids or delamination.

Color Identification (Optional)

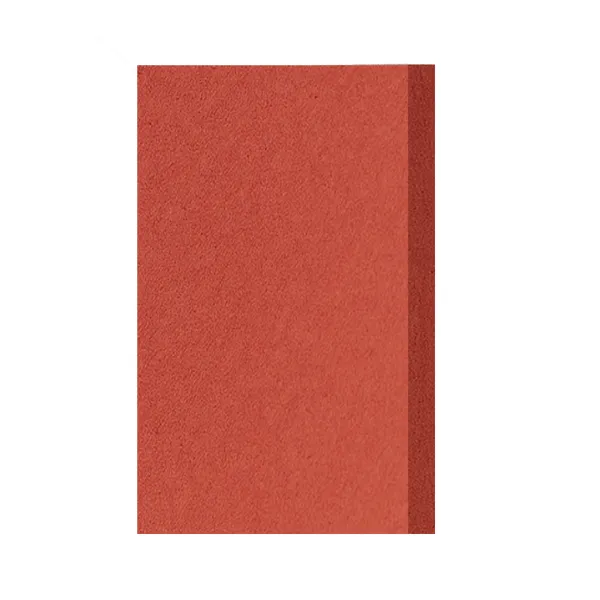

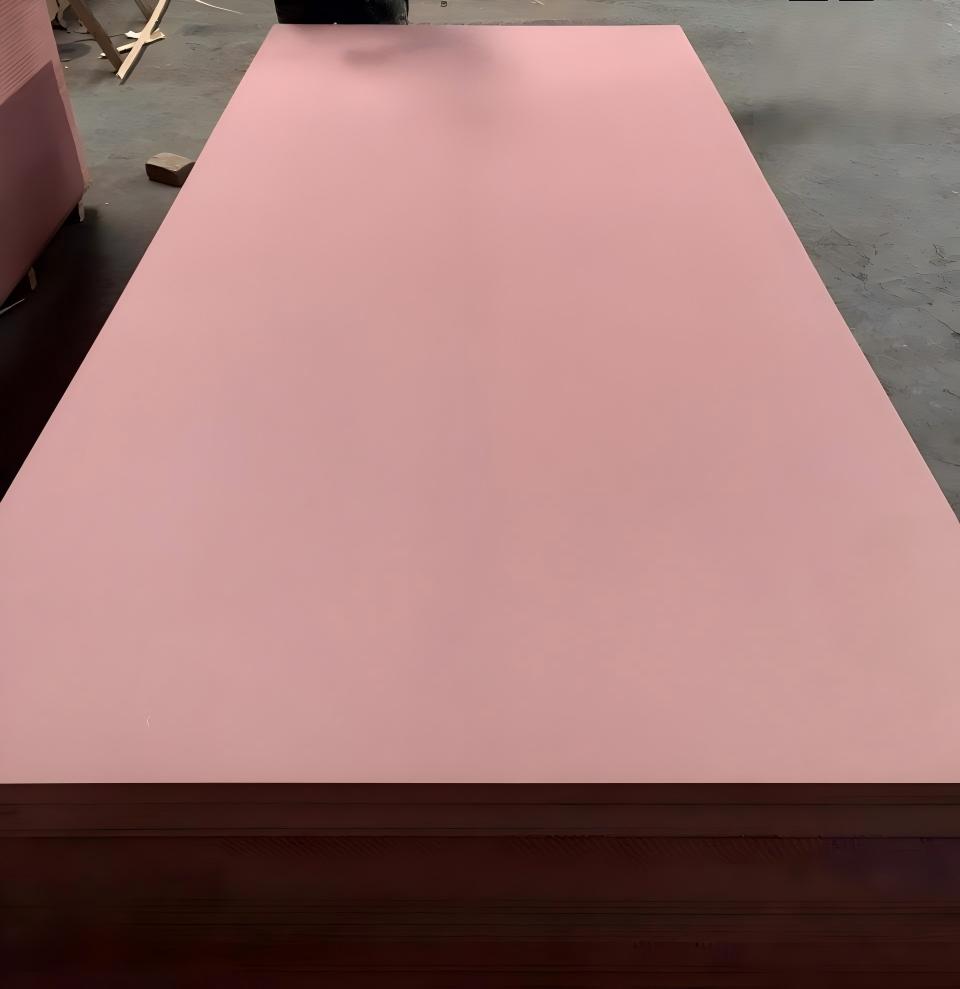

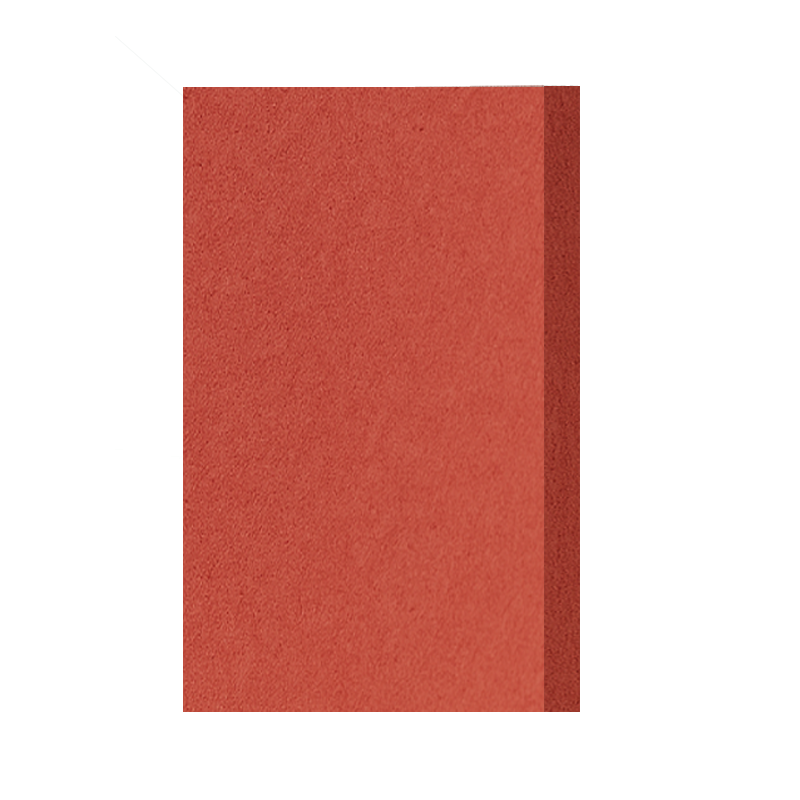

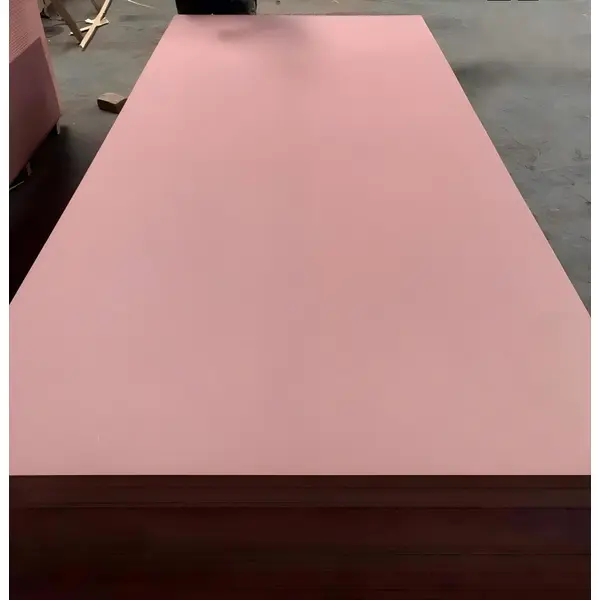

Some manufacturers dye FR MDF in red or pink tones for easy identification.

5. Fire Performance Standards

Fire Rated MDF is tested according to international fire safety standards such as:

European Standard EN 13501

Common classifications include:

• B-s1, d0 (high fire performance)

• C or D class (moderate fire resistance)

British Standards

• Class 0

• Class 1

These ratings measure flame spread, smoke production, and burning behavior.

6. Applications of Fire Rated MDF

Fire Rated MDF is widely used in areas requiring fire safety compliance:

Commercial Buildings

• Office partitions

• Wall panel systems

• Corridor cladding

Hotels and Hospitality

• Wall decorations

• Ceiling systems

• Room furniture

Public Buildings

• Hospitals

• Schools

• Airports and train stations

Interior Furniture

• Fire-rated cabinets

• Display units

• Office furniture systems

Wall and Ceiling Systems

• Decorative wall panels

• Ceiling panels

• Interior architectural features

7. Advantages of Fire Rated MDF

• Improved fire safety performance

• Complies with building fire regulations

• Easy to process like standard MDF

• Smooth surface suitable for finishing

• Cost-effective compared to metal or stone fireproof materials

• Suitable for large-scale commercial projects

8. Limitations of Fire Rated MDF

Despite its benefits, it has some limitations:

Not Fully Fireproof

It can still burn under prolonged high-temperature exposure.

Higher Cost

More expensive than standard MDF due to chemical treatment.

Slight Strength Reduction

Fire-retardant additives may slightly affect mechanical strength.

Edge Sensitivity

Cut edges should be sealed to maintain fire performance.

9. Fire Rated MDF vs Other Boards

10. How to Identify High-Quality Fire Rated MDF

When selecting FR MDF, consider:

Certification

• EN 13501 compliance

• British fire safety standards

• CARB or environmental certifications

Surface Quality

• Smooth and defect-free surface

• No cracks or blistering

Fire-Retardant Uniformity

• Consistent performance across the board

Odor and Emission

• Low formaldehyde emission (E1/E0/CARB P2)

Machining Performance

• Clean cutting edges without excessive chipping

11. Storage and Handling Guidelines

• Store in dry and ventilated areas

• Avoid direct exposure to rain or moisture

• Seal edges after cutting

• Keep away from open flames

• Follow building fire safety installation standards

12. Conclusion

Fire Rated MDF is an upgraded version of standard MDF designed to improve fire safety in interior environments. Through fire-retardant chemical treatment and controlled manufacturing processes, it provides delayed ignition and reduced flame spread.

It offers a strong balance of:

• Fire safety performance

• Good workability

• Smooth surface quality

• Cost efficiency

It is widely used in commercial buildings, hotels, public facilities, and interior spaces where fire safety regulations are required.

How Pusen Controls the Quality of Fire Rated MDF Board

At Pusen, Fire Rated MDF (FR MDF) quality is controlled through a strict full-process system that covers raw materials, fire-retardant treatment, production parameters, testing, and final inspection. The goal is to ensure stable fire performance, consistent density, and reliable safety compliance for commercial and construction applications.

1. Strict Raw Material Selection

Quality control begins with selecting high-quality wood fibers.

Pusen ensures:

• Clean hardwood or softwood fibers

• No impurities such as sand, bark, or metal

• Uniform fiber size for stable board structure

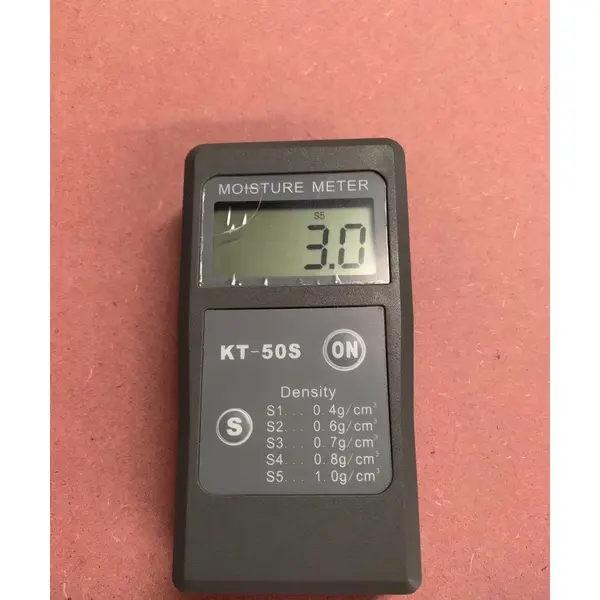

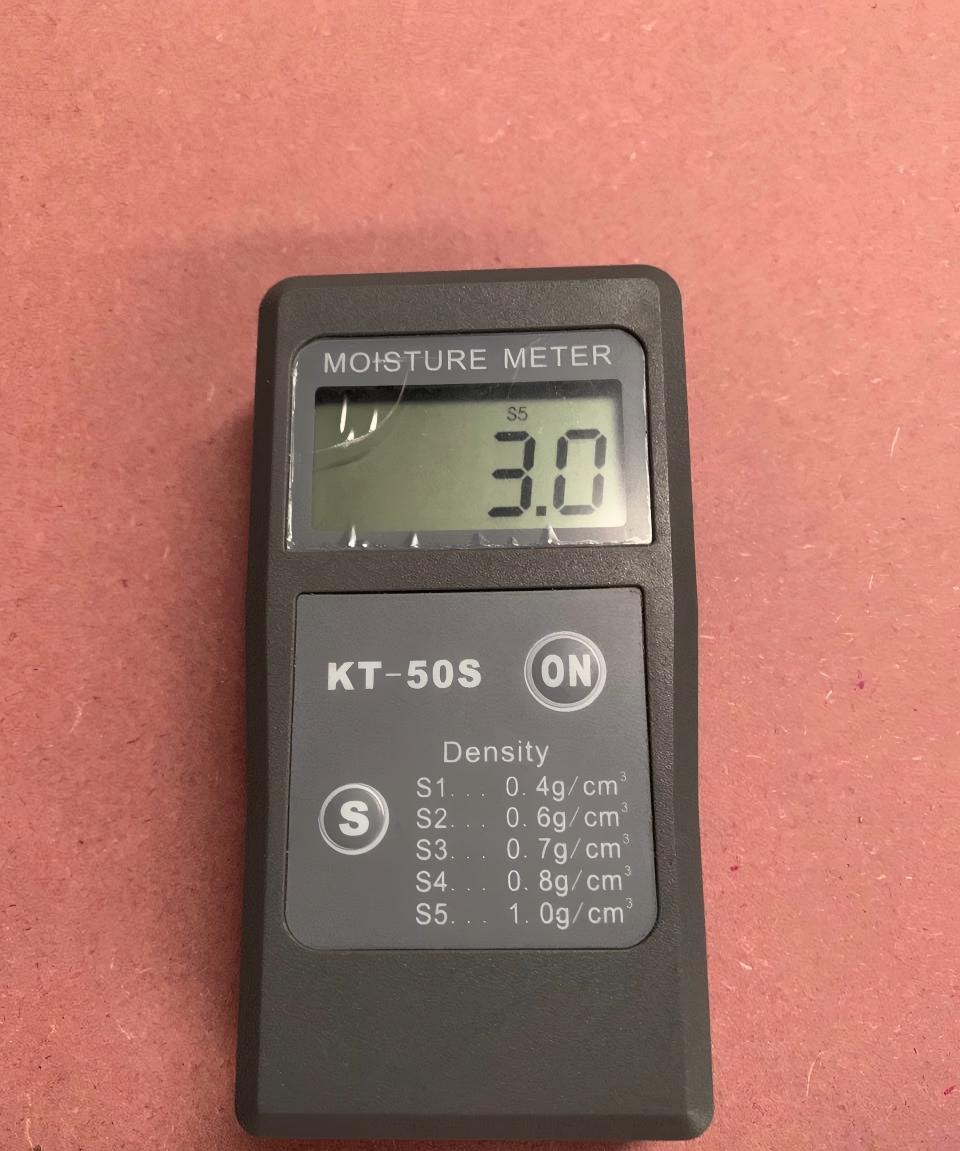

• Controlled moisture content before processing

Only qualified fibers are used to ensure consistent density and fire performance.

2. Precise Fire-Retardant Chemical System

The key to FR MDF is the fire-retardant formulation.

Pusen controls:

• Accurate dosage of fire-retardant chemicals

• Uniform mixing with wood fibers

• Stable distribution across the entire mat

• Use of high-quality modified resin systems

This ensures:

• Consistent flame resistance across the board

• Reduced flame spread rate

• Stable char formation during fire exposure

3. Controlled Fiber Processing and Blending

To ensure uniform performance, Pusen strictly manages:

• Fiber refining consistency

• Even resin and chemical spraying

• Stable fiber-to-resin ratio

• Moisture balance before hot pressing

This prevents weak zones and ensures uniform fire resistance.

4. Precise Hot Pressing Technology

Hot pressing is a critical stage for FR MDF quality.

Pusen strictly controls:

• Temperature curve stability

• Pressure uniformity across the press plate

• Pressing time accuracy

• Resin curing and fire-retardant activation

Benefits include:

• Strong internal bonding

• Stable density distribution

• Proper activation of fire-retardant system

5. Density and Thickness Control

Each board is checked for structural consistency:

• Edge-to-center density balance testing

• Vertical density profile control

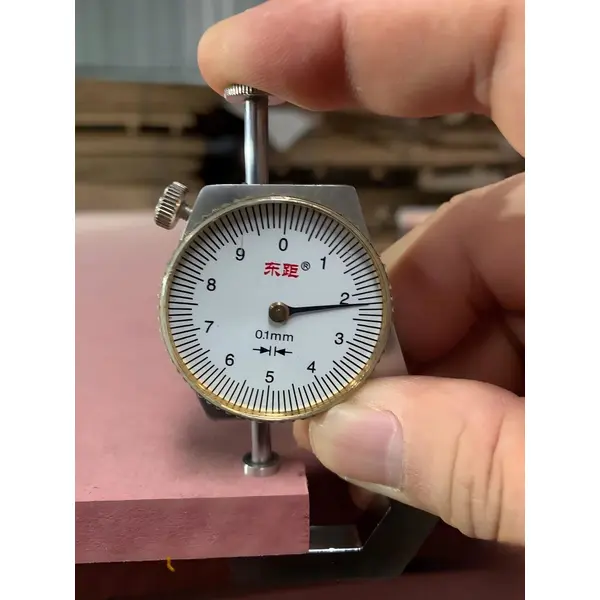

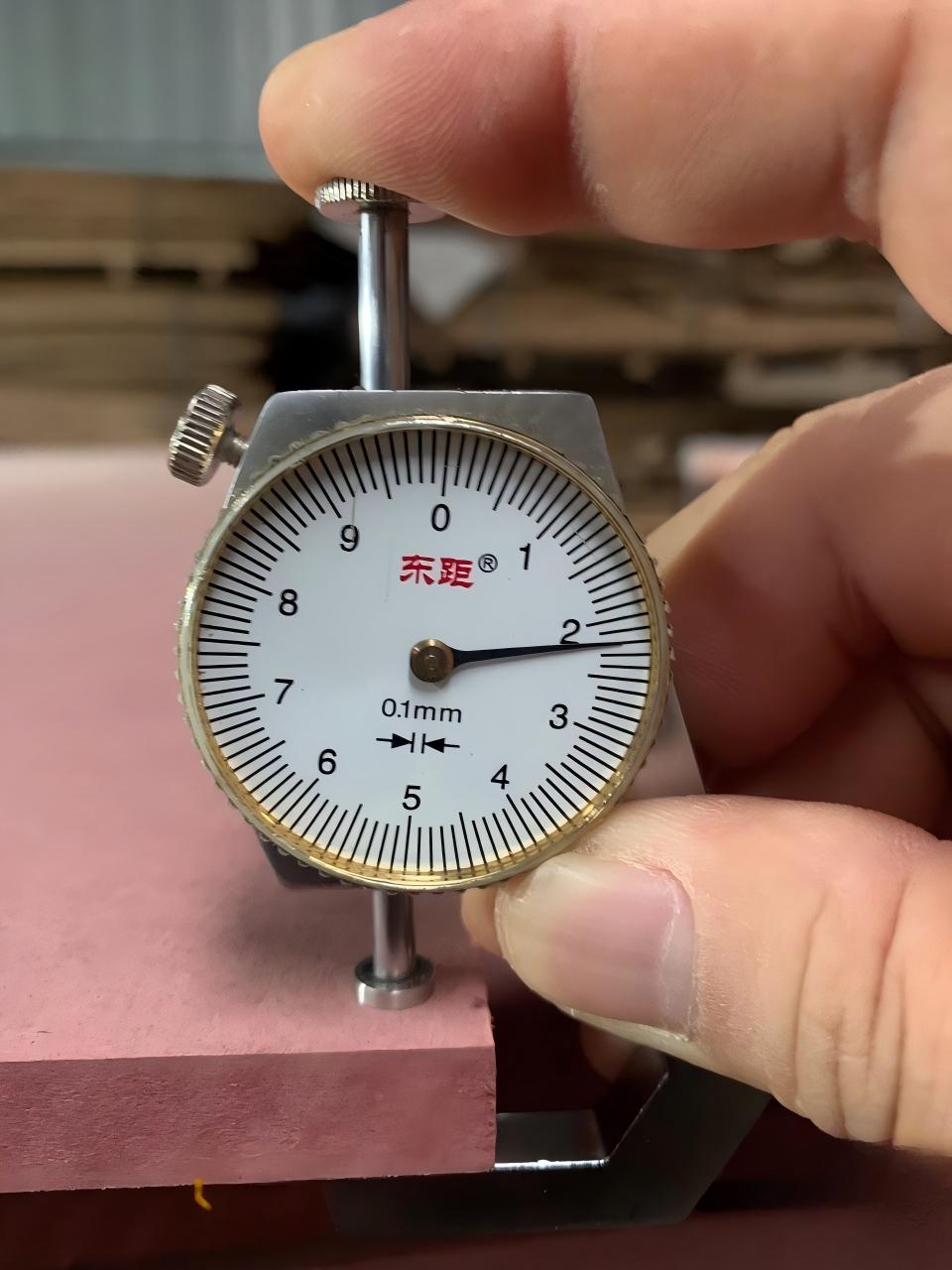

• Multi-point thickness measurement

This ensures:

• Flat panels

• Dimensional accuracy

• Stable mechanical performance

6. Surface Sanding and Visual Inspection

After pressing, boards go through finishing control:

• Precision sanding for smooth surface

• No burn marks, cracks, or bubbles

• Clean surface suitable for finishing (paint/laminate/veneer)

Surface quality is critical for both aesthetics and performance.

7. Fire Performance and Laboratory Testing

Pusen conducts strict fire safety tests, including:

• Flame spread rate testing

• Ignition resistance testing

• Char formation evaluation

• Smoke density performance (if required by standard)

Boards are tested according to international standards such as:

• EN 13501

• BS fire classification systems

Only qualified batches are released.

8. Mechanical Strength Testing

To ensure usability in furniture and construction, Pusen tests:

• Internal bond strength

• Bending strength (MOR)

• Screw holding strength

This ensures fire resistance does not compromise structural performance.

9. Formaldehyde Emission and Environmental Control

Pusen ensures compliance with global environmental standards:

• E1 / E0 low emission options

• CARB P2 compliance for export markets

• Controlled resin selection

• Regular lab emission testing

This makes the boards safe for indoor applications.

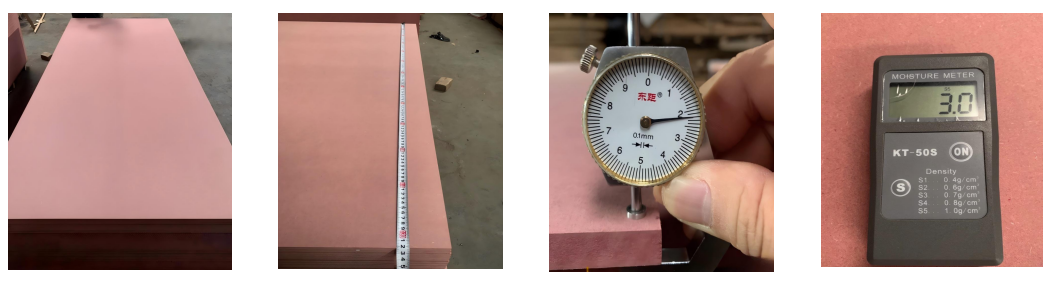

10. Final Quality Inspection Before Shipment

Before delivery, every batch undergoes final inspection:

• Visual defect check (cracks, delamination, edge damage)

• Thickness and size verification

• Sampling performance tests

• Flatness and density inspection

Non-conforming boards are rejected.

11. Professional Packaging and Storage Control

To maintain quality during transportation:

• Moisture-proof packaging

• Strong pallet stacking to prevent bending

• Clear labeling and batch traceability

• Dry warehouse storage conditions

This ensures stable quality upon arrival at customer sites.

Conclusion

Pusen controls Fire Rated MDF quality through a complete end-to-end system:

Raw material selection → fire-retardant chemical control → fiber processing → hot pressing → density control → surface finishing → laboratory fire testing → final inspection

This strict quality system ensures every Fire Rated MDF board delivers:

• Reliable fire resistance performance

• Stable mechanical strength

• Consistent density and surface quality

• Full compliance with international safety standards
