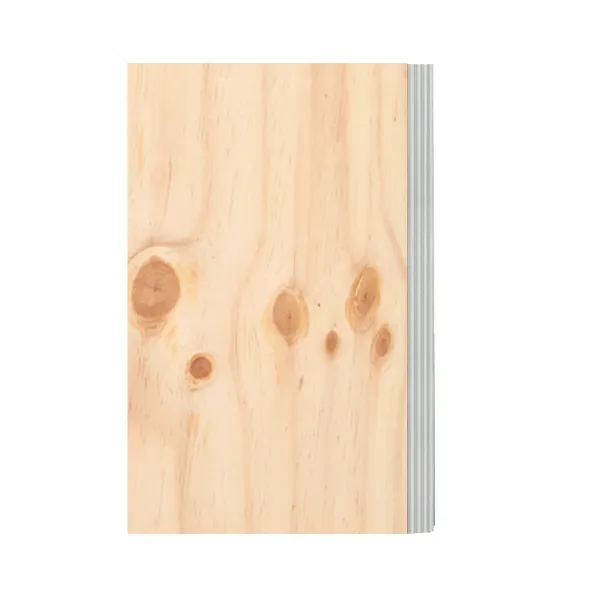

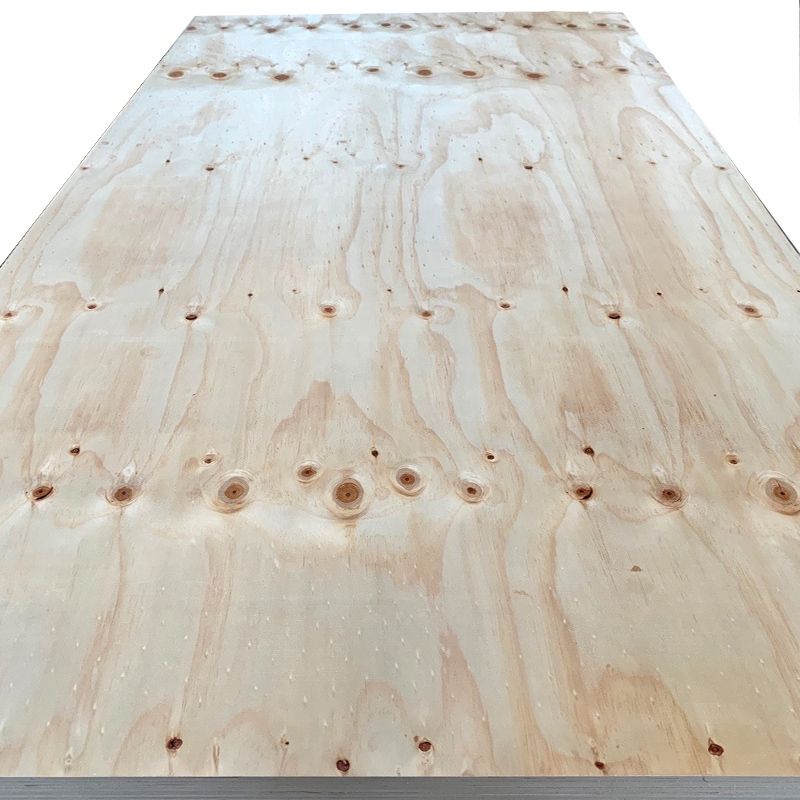

CDX PLYWOOD

CDX Plywood is a structural-grade plywood panel made with high-quality wood veneers and bonded using durable adhesives. It is widely used in construction and industrial applications where strength and performance are more important than appearance.

The “CDX” grade means:

C = Front face grade (rough surface, may have knots and defects)

D = Back face grade (lower appearance standard)

X = Exterior glue (WBP / waterproof adhesive)

CDX plywood is known for its strong load-bearing capacity, moisture resistance, and cost-effectiveness, making it a popular choice in construction projects.



 Key Features:

High Structural Strength – Suitable for heavy-duty applications

Water-Resistant Glue (WBP) – Suitable for exterior or humid environments

Cost-Effective Solution – Economical for construction use

Strong Nail & Screw Holding Power

Stable Performance – Reliable in structural applications


sku:commercial plywood
+008615853930865 +0086 15853930865

Description

                                       PUSEN CDX PLYWOOD


Product NameCDX Plywood/CDX Structural Plywood
Other namescdx plywood sheets,knotty pine plywood,cdx grade plywood, exposure 1 plywood,cdx pine plywood,c-d exterior plywood,exposure-1 plywood,APA Rated Sheathing,PS 1-09 plywood
Face/Back SpeciesRadiata Pine
Face/Back GradeC-Grade Face (C-Faced: Permits knots up to 1-1/2″ in diameter and knotholes up to 1″ in diameter)
D-Grade Back (D-Faced: Permits unrepaired knotholes up to 2-1/2″ in diameter and larger cracks)A/C, B/C Face/Back Grade can also be customized according to your requirements
SizeCommonly used: 1220x2440mm (4’x8′),Others: 915 mm x 1830 mm (3’x6′), 915x2440mm (3’x8′), 1220×2745 mm (4’x9′), 1220 x 3050mm (4′ x 10′), 1525x2440mm (5’x8′),1525 mm x 3050 mm (5’x10′),Upon To Request
Thickness6mm-28mm, regular sizes  6 (1/4″), 9 (3/8″), 10 (13/32″), 12 (15/32″), 13 (1/2″), 15 (19/32″), 16 (5/8″), 18 (11/16″), 19 (3/4″), 20 (25/32″), 21 (13/16″), 22 (7/8″), 24 (15/16″), 25 (1″),28 (1-1/8″) mm/inch, customizable upon request
CorePeeing Veneer, Pine(Masson Pine, Radiata Pine,Russian Pine), Mixed core, Eucalyptus;Or Flat Jointed Recycled Core
Hot PressOne Time Hot Pressed,Two Time Hot Pressed,(Diference: Two Time Hot Pressed Plywood Smooth Surface;One Time Hot Press,Low Cost.Choose By Your need)
Span Rating32/16 or 48/24 (depending on thickness)
Number of Plies9MM(5,7,9 ply ),12MM(7,9,11 ply ),15MM(7,9,11,13 ply ),18MM(9,11,13,15 ply ),21MM(13,15,17 ply ),25MM(17,19 ply );
GlueWBP (Weather and Boil Proof)  Melamine / Phenolic Glue
Density500 – 650 kg/m³
Edge ProfileSquare Edge (SE): Used in walls and roofs.
Tongue and Groove (T&G): Mainly used in subfloors.
Moisture Content8% – 14% (ex-factory)
Surface FinishUnsanded or Touch-Sanded
Fire RatingUnrated or Class C-Rated (Processed)
FormaldehydeN/A (Not usually required) / CARB P2 / EPA TSCA Title VI Compliant (Optional)
Modulus of Elasticity (MOE)Longitudinal: ≥ 6500 MPa; Transverse: ≥ 3500 MPa
Tolerance+/-0.5MM
MOQ42CBM/40’GP.50CBM/40’HQ
PackingInner Packing:0.2mm Thickness Plastic Bag,Outer Packing:Pallet With Carton And Strapped With Steel Tape
DeliveryWithin 20 days After Confirm The Order
DaysPaymentTT,L/C,DP,MONEYGRAM,WESTERN UNION,PAYPAL
UsageRoof Sheathing (or Decking),Wall Sheathing,Subflooring,temporary window/door coverings, concrete forms (for one or two pours), job-site ramps, or protective barriers.
Capacity10000CBM PER MONTH
CertificateAPA®|PS 1-09 / PS 1-19, PS 2-18 ,CE,CARB,FSC, SFI®,PEFC,ISO9001


How PUSEN Controls the Quality of CDX Plywood

At PUSEN, we focus on strict structural-grade quality control to ensure every CDX plywood panel delivers strength, durability, and stable performance for construction applications.

1. Strict Core Material Selection

We carefully select high-strength cores such as poplar, pine, or eucalyptus. Each core is inspected for:

2. Moisture Content Control

All veneers and cores are kiln-dried under strict conditions. Moisture is controlled to prevent:

3. Exterior-Grade Glue System (WBP)

We use high-performance waterproof adhesives (Phenolic or Melamine WBP glue) to ensure:

4. Hot Press Process Control

Temperature, pressure, and pressing time are strictly controlled to ensure:

5. Structural Strength Inspection

Each board is tested for:

6. Dimensional & Surface Control

We ensure strict control over:

7. Final Inspection Before Shipment

Every sheet is checked for:

Only qualified products are released for export.

PUSEN Commitment

Through strict raw material control and advanced structural manufacturing processes, PUSEN ensures every CDX plywood panel delivers strong performance, reliable durability, and consistent quality for global construction projects.
