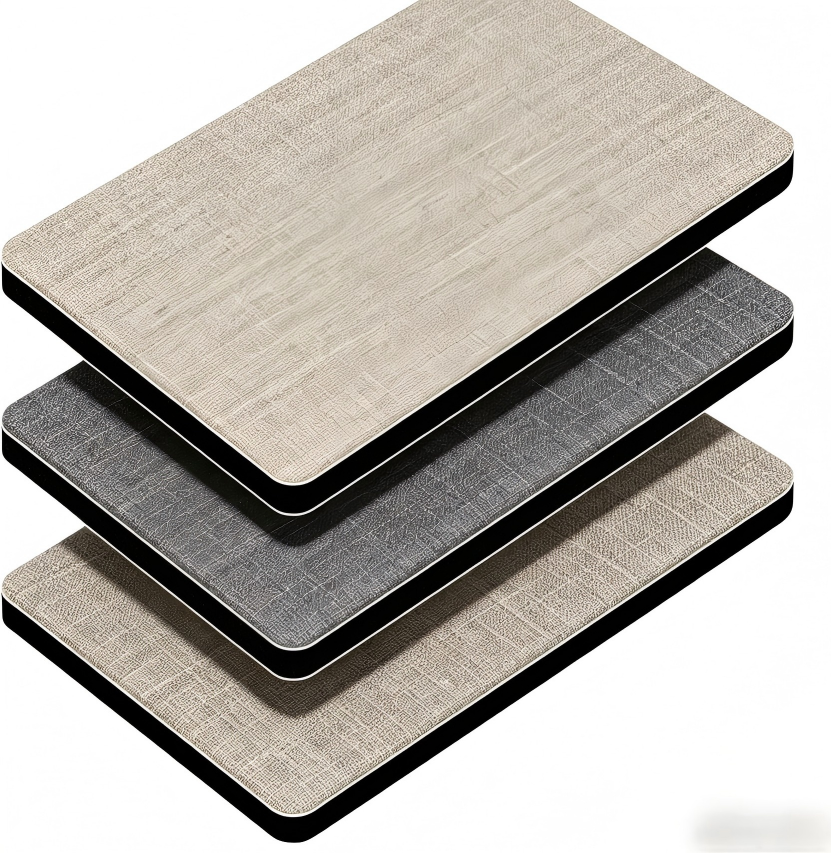

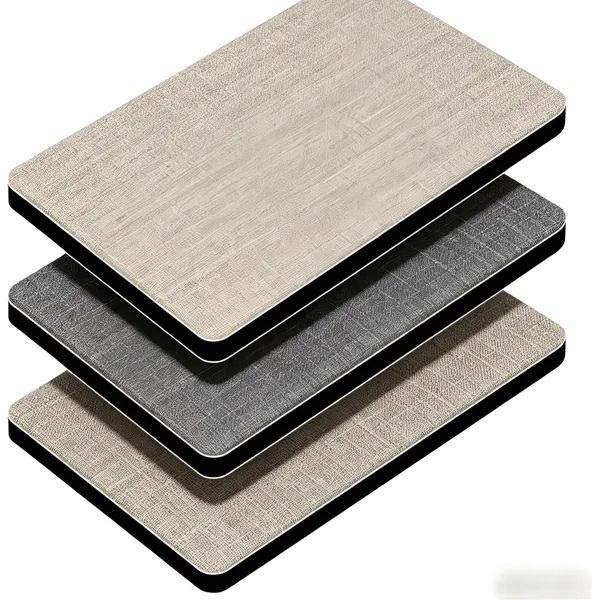

PUSEN BAMBOO CHARCOAL BOARD
| Section | Title | Details |
|---|---|---|
| 1 | Product and Company Identification | Product: Bamboo Charcoal Wall Panel |
| 2 | Hazard Identification | Not classified as hazardous under GHS. Dust generated during cutting may cause mild eye or respiratory irritation. |
| 3 | Composition / Ingredients | PVC Resin 40–60%; Bamboo Charcoal Powder 10–20%; Calcium Carbonate 20–40%; Additives <5% |
| 4 | First Aid Measures | Eye: rinse with water 15 min; Skin: wash with soap and water; Inhalation: move to fresh air; Ingestion: seek medical attention |
| 5 | Fire-Fighting Measures | Extinguishing media: CO₂, foam, dry powder; Hazard: may release CO, CO₂, HCl under fire; Protection: SCBA required |
| 6 | Accidental Release Measures | Solid form: not applicable; Dust: avoid inhalation; clean with vacuum or wet wiping; avoid dry sweeping |
| 7 | Handling and Storage | Avoid high heat and open flame; ensure ventilation during cutting; store in cool, dry place away from sunlight |
| 8 | Exposure Controls / PPE | Gloves recommended; dust mask when cutting; safety goggles during machining; normal ventilation sufficient |
| 9 | Physical and Chemical Properties | Solid panel; slight plastic odor; density 1.6–2.0 g/cm³; insoluble in water; melting point >120°C |
| 10 | Stability and Reactivity | Stable under normal conditions; avoid heat and flame; decomposition may produce CO, CO₂, HCl |
| 11 | Toxicological Information | Not toxic under normal use; dust may cause mechanical irritation to eyes and respiratory system |
| 12 | Ecological Information | Not classified as environmentally hazardous; no known bioaccumulation |
| 13 | Disposal Considerations | Dispose as construction waste according to local regulations; do not burn in open environment |
| 14 | Transport Information | Not regulated as dangerous goods under DOT / IMDG / IATA |
| 15 | Regulatory Information | Based on raw materials, may comply with REACH and RoHS requirements (if applicable) |
| 16 | Other Information | This MSDS is for reference only and not a certified third-party document |
How Pusen Decor Controls Bamboo Charcoal Board Quality
1. Raw Material Inspection (IQC – Incoming Quality Control)
Before production starts, all materials are checked:
PVC resin purity and melt index
Bamboo charcoal powder fineness & moisture level
Calcium carbonate whiteness and particle size
Additives compliance (REACH / RoHS if exporting to EU)
Purpose: ensure stable base materials = stable final product
2. Formula Mixing Control
Automatic batching system for accurate ratio control
High-speed mixing machine for uniform blending
Temperature control during mixing to prevent degradation
Key point: incorrect ratio = warping, brittleness, or color inconsistency
3. Extrusion Production Monitoring
Twin-screw extruder temperature zones strictly controlled
Pressure and speed monitored in real time
Online thickness calibration system
Prevents:
uneven surface
bubbles
deformation
4. Surface Treatment & Lamination QC
UV coating / film lamination inspection
Texture alignment (marble/wood grain accuracy)
Color consistency check under standard light box
5. In-Line Quality Inspection (IPQC)
During production:
Thickness measurement every batch
Edge straightness check
Surface defect scanning (scratches, bubbles, dents)
Weight consistency test
6. Finished Product Testing (FQC)
After production:
Mechanical tests
Impact resistance
Flexural strength
Compression strength
Environmental tests
Formaldehyde emission (E0/E1 standard)
VOC testing
Physical tests
Water absorption
Thermal stability
Fire resistance (B1 level typical)
7. Aging & Stability Test
High-temperature exposure test
UV aging simulation
Humidity cycle testing
Ensures panel does not fade, warp, or crack over time
8. Final Inspection Before Shipment (OQC)
Random sampling (AQL standard)
Packaging check
Label/barcode verification
Carton drop test for logistics safety
9. Certifications Often Used
Factories like Pusen Decor usually align with:
ISO 9001 Quality Management System
SGS / Intertek testing reports
CE (EU market)
RoHS compliance (material safety)
Summary
In simple terms, Pusen Decor controls quality through:
strict raw material selection
precise extrusion manufacturing
multi-stage in-line inspection
lab testing + aging tests
final shipment sampling checks
